Fixture Leads

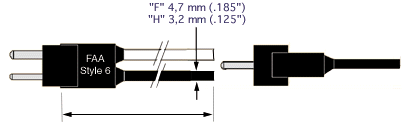

FAA L823 Type II, Class A, Style 6 Plug
Available in 1/2 meter (20") increments to any length
Ordering information
Develop a complete catalog number by choosing the characters to fill the empty boxes below
Catalog Number
95MP6
o
Cable
F Two individual wires, #12 AWG (3,3mm2), watertight, thermoplastic-rubber insulated, rated 600 volts between contacts, 1500 volts to earth, 20 amperes, 90° C. o
o
o
H Two individual wires, #16 AWG (1,3mm2), watertight, thermoplastic-rubber insulated, rated 600 volts between contacts, 1500 volts to earth, 20 amperes, 90° C.
Length in meters
Available in 1/2 meter increments to any length		 o
o
ETL Certificate
