L823 Type II, Class B, Style 11, Secondary Connector Kit
|
| To FAA Advisory Circular AC 150 / 5345-47 |
|
|
Kit Contents
|

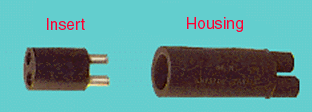

Cut-away of complete Connector
|
 |
- Silicone Lubricant
- Wiper
- Installation Instructions
|
|
 |
How to specify for quotation:
"Amerace® 90R Secondary Receptacle Kit for two individual wires" is a sufficient description , all sizes are the same price.
How to specify for ordering:
Develop a catalog number as follows:
|
 |
| Table 1 |
| Insulation O.D. |
| Metric |
Imperial |
Size |
| Min. |
Max. |
Min. |
Max |
Code |
| 3 |
4 |
.120" |
.160" |
S |
| 3,9 |
5,5 |
.155" |
.205" |
A |
| 5,0 |
6,6 |
.195" |
.260" |
B |
| 6,4 |
8,4 |
.250" |
.330" |
C |
|
| Table 2 |
| Wire Size |
Size Code |
| Concentric Stranded |
Solid |
| . |
14-16AWG |
. |
12-14AWG |
8 |
| 2,5mm2 |
. |
. |
. |
6 |
| 4mm2 |
10-12AWG |
6mm2 |
8-10AWG |
6 |
| 6mm2 |
8-AWG |
10mm2 |
6 AWG |
4 |
|
Example
Order catalog number 90R-B6 for a secondary connector kit for a receptacle (female) termination on 2 single conductors with an outside diameter over insulation between 5mm2 (.195") and 6.6mm2 (.260") and wire size of 4mm2 (10-12 AWG) stranded or 6mm2 (8-10 AWG) solid. |
Shipping
0,06kg (.14#) each
100/box
6,5 kg (14#) |
|
